Detailed Product Description

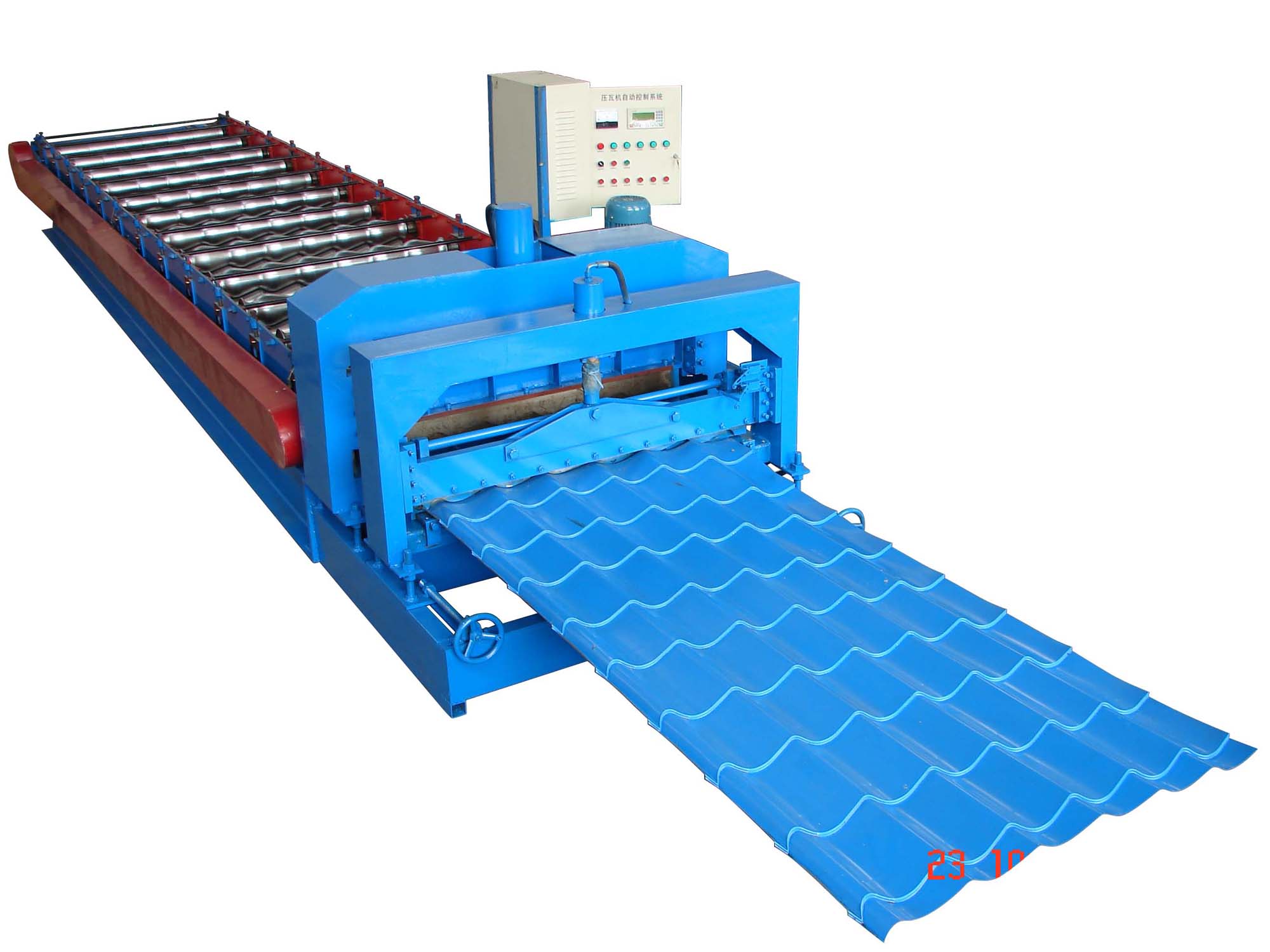

the machine is used for processing and forming steel coil or Aluminum coil into roof products .

1      Raw material: colored Aluminum coils or colored steel coil. The yield strength of the raw material is about 235 Mpa more; thickness: 0.30~1.0mm; width: 1000mm~1200mm.

2      The speed of the production line: 0~20m/min variable

3      The quantity of roller rows14 rows.

4      The diameter of rollersΦ70mm

5      Outer dimensions of the production line:  9.2*1.8*1.6M

6      Weights of production lines:  about 4.7MT.

7      Power supply: 7kw, 3 phase ( single phase), 415V120/220/380, 50Hz60Hz. All electrical machineries can be born 10% Voltage fluctuation.

8      The Roof shape requirements: the whole combined machines can produce out the roof   products continuously and steadily. These roof products are accordant with the drawings the buyer supply.
