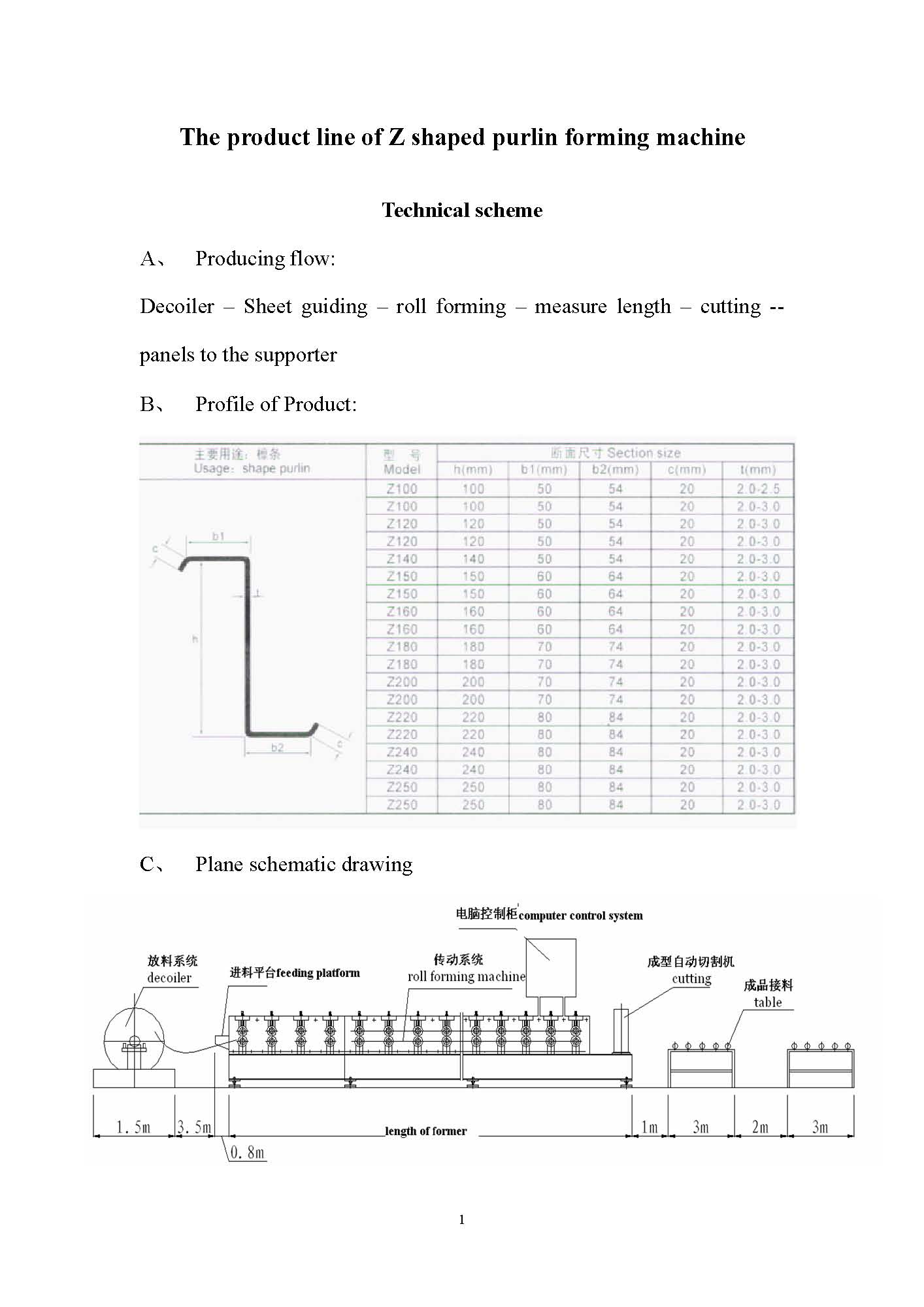

Z Purlin Forming Machine
Product Details:
| Place of Origin | Shanghai China |
|---|---|
| Model Number | Z-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Payment Terms: | T/T |
| Supply Ability: | 20 Set/Sets per Month |
Detailed Product Description
(1) Rolling range for the Z shaped steel purlin: width: 50mm 100mm height: 40mm 80mm
(2) Thickness of the plate: 1.8mm 3.5mm
(3) Productivity: about 10 m/min
(4) Rolling type: Adopt 13 rows of rollers (above and below) to prestamp, 3 rows to regulate the vertical, slope and curve, all together roll and stamp to form the final shape. Adopt 5rows of upright rollers for adjusting at last.
(5) Diameter of the roller: 80mm
(6) Dimensions( main structure): 12000mm*1700mm*1400mm
(7) Weight: 8200kg
(8) Power: 11kw+15kw
(9) Length of processing line: 18m 26m
Z Purlin Forming Machine
