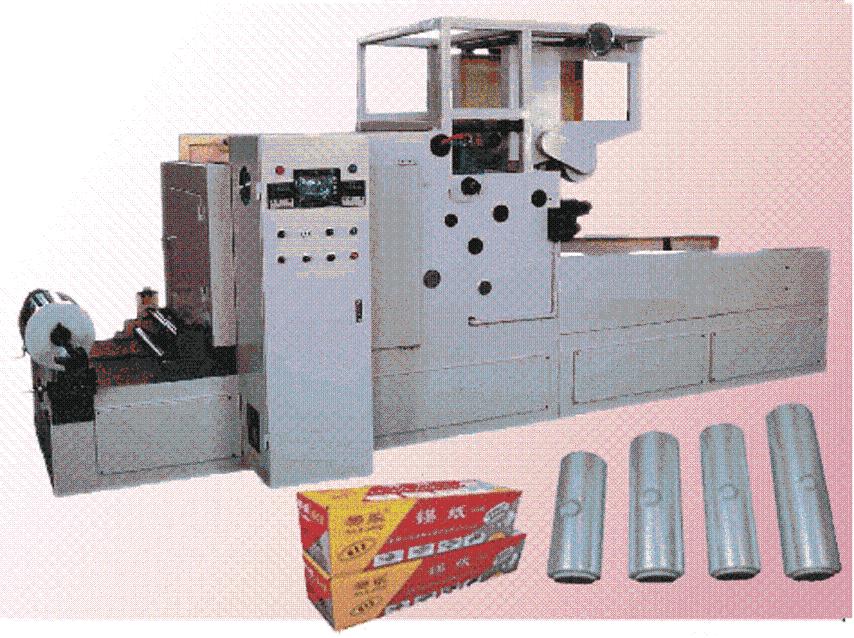

Household Al Foil Winding Machine
Detailed Product Description
Household Al Foil Rewinding Machine Model HGM650 is newly developed and produced by our company. It has integated foil gluing, coiling, length calculating and cutting, and is applicable to the dividing, rewinding and cutting of Al foils and other packing materials. The machine has integrated CPIH rogrammable controllers as the core control system,thus having realized the automation of management, take-up, gluing, coiling and cutting in the process of operation by means of human-machine interface.
Main Technical Parameters
Material Thickness | 0.01~0.02mm |
Production Efficiency | The length one roll: 5 M, 5~10 rolls one minute |
Feeding Coil Width | 250~550mm |
Magnetic powder brake torque of feeding device | 25N.M |
Maximum Decoiling Diameter | Ø600mm |
Magnetic powder brake torque of rewinding device | 12N.M |
Inner Diameter of feeding coil core | Ø75mm |
Inner diameter of finished foil roll core | Ø30mm, Ø38mm |
The length of Foil Roll | 3.0~300.0 meters |
Total power capacity | 4.0 KW |
Total weight of the whole machine | 1500 Kgs |
External Dimension | 4164*1100*1820mm |
