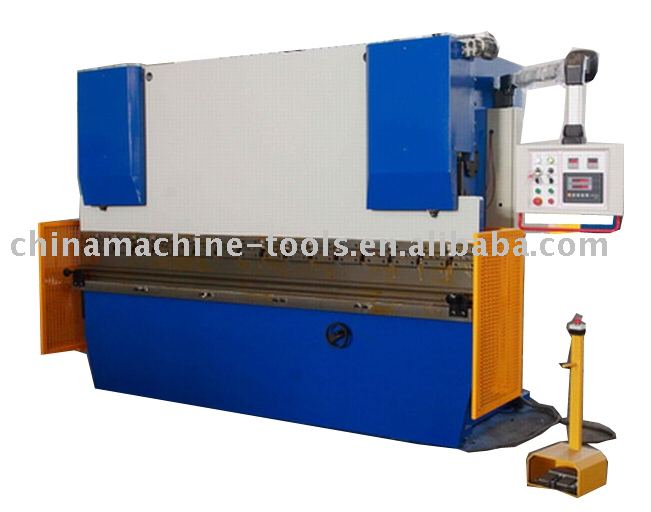

Hydraulic Press Brake
Product Details:
| Place of Origin | China |
|---|---|
| Brand Name | GMT |
| Model Number | HPBS series |
Detailed Product Description
model | Normal pressure (kn) | Working table length (mm) | Distance between housing | Throat depth (mm) | Ram travel (mm) | Max . open height | Adjust- ment of ram travel (mm) | Working table Height (mm) | Main motor | speed | Oil flow rate (L/min) | Machine overall Dimension (mm) L x W x H | Machine weight (T) | |
Power (kw) | Speed (mm/s) | Approach/ Working/ return | ||||||||||||
100x2500 | 1000 | 2500 | 2050 | 320 | 130 | 390 | 100 | 850 | 7.5 | 960 | 8 / 6 / 8 | 25 | 2600x1750x2230 | 6.8 |
100x3200 | 1000 | 3200 | 2600 | 320 | 130 | 390 | 100 | 850 | 7.5 | 960 | 8 / 6 / 8 | 25 | 3500x1750x2230 | 7.2 |
100x4000 | 1000 | 4000 | 3200 | 320 | 130 | 390 | 100 | 850 | 7.5 | 960 | 8 / 6 / 8 | 25 | 4060x1800x2500 | 8.2 |
100x5000 | 1000 | 5000 | 4080 | 320 | 130 | 390 | 100 | 850 | 7.5 | 960 | 8 / 6 / 8 | 25 | 5100x1800x2700 | 9 |
125x2500 | 1250 | 2500 | 2050 | 320 | 130 | 390 | 100 | 850 | 11 | 960 | 8 / 6 / 8 | 25 | 2600x1750x2330 | 7.8 |
125x3200 | 1250 | 3200 | 2600 | 320 | 130 | 390 | 100 | 850 | 11 | 960 | 8 / 6 / 8 | 25 | 3500x1750x2330 | 7.5 |
125x4000 | 1250 | 4000 | 3200 | 320 | 130 | 390 | 100 | 850 | 11 | 960 | 8 / 6 / 8 | 25 | 4080x1750x2500 | 7.5 |
125x5000 | 1250 | 5000 | 4080 | 320 | 130 | 390 | 100 | 850 | 11 | 960 | 8 / 6 / 8 | 25 | 5080x1750x2600 | 7.5 |
160x3200 | 1600 | 3200 | 2600 | 320 | 200 | 470 | 160 | 840 | 11 | 960 | 7 / 5 / 7 | 25 | 3400x2100x2520 | 10.5 |
160x4000 | 1600 | 4000 | 3200 | 320 | 200 | 470 | 160 | 840 | 11 | 960 | 7 / 5 / 7 | 25 | 4060x2100x2600 | 11.8 |
160x5000 | 1600 | 5000 | 4080 | 320 | 200 | 470 | 160 | 840 | 11 | 960 | 7 / 5 / 7 | 25 | 5080x2100x2600 | 14 |
160x6000 | 1600 | 6000 | 4800 | 320 | 200 | 470 | 160 | 840 | 11 | 960 | 7 / 5 / 7 | 25 | 6100x2100x2680 | 15.8 |
200x3200 | 2000 | 3200 | 2600 | 320 | 200 | 520 | 180 | 850 | 15 | 960 | 7 / 5 / 7 | 63 | 3400x2200x2650 | 12.8 |
200x4000 | 2000 | 4000 | 3200 | 320 | 200 | 520 | 180 | 850 | 15 | 960 | 7 / 5 / 7 | 63 | 4080x2200x2650 | 14.5 |
200x5000 | 2000 | 5000 | 4080 | 320 | 200 | 520 | 180 | 850 | 15 | 960 | 7 / 5 / 7 | 63 | 5100x2200x2660 | 16 |
200x6000 | 2000 | 6000 | 4800 | 320 | 200 | 520 | 180 | 850 | 15 | 960 | 7 / 5 / 7 | 63 | 6120x2200x2660 | 17.5 |
250x3200 | 2500 | 3200 | 2600 | 400 | 250 | 560 | 220 | 865 | 18.5 | 960 | 7 / 5 / 7 | 63 | 3400x2300x2800 | 13.5 |
250x4000 | 2500 | 4000 | 3200 | 400 | 250 | 560 | 220 | 865 | 18.5 | 960 | 7 / 5 / 7 | 63 | 4120x2300x2800 | 15 |
250x5000 | 2500 | 5000 | 4080 | 400 | 250 | 560 | 220 | 865 | 18.5 | 960 | 7 / 5 / 7 | 63 | 5100x2300x2850 | 17 |
250x6000 | 2500 | 6000 | 4800 | 400 | 250 | 560 | 220 | 865 | 18.5 | 960 | 7 / 5 / 7 | 63 | 6120x2300x2900 | 19 |
Hydraulic Press Brake
