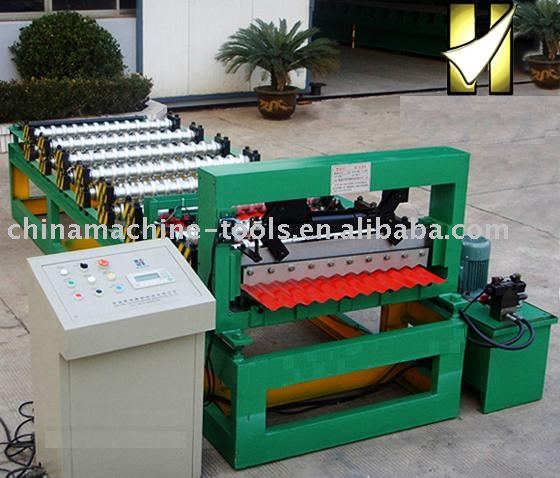

Roll Forming Machine
Payment & Shipping Terms:
| Packaging Details: | Nude, suitable for sea transportation. |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
Detailed Product Description
Main SCHEME
Line speed: 8-12 m/min.
Total power: 3 kW
Voltage: 3Ph 380V±10% /50 Hz,
Machine dimension: 4800×1350×990mm
Total G.W: 3500 kgs
Operating Workers: 1 or 2
Feeding → Rolling→ Formed → Cutting
Material | Effective width | Coil width | Thickness (mm) |
Color painting sheet Galvanizing sheet | 840 | 1000 | 0.3-0.8 |
Application: roof panel | |||
Manual decoiler
Typedual holding, manual de-coil, driven
Coiler max.width: 1000mm
Coil inner-diameter: 400-520mm
Max. Capacity: 5000kgs
Roll forming M/C
Material of roller: HT200 cast-iron and surface coated with Chrome
Material of foundation: 14# channel steel
Diameter of roller: 68mm
Yield strength235Mpa
Power of main motor: 1.5kW
Roller stands: 8 stations
HYDRAULIC SYSTEM
Power of hydraulic oil pump motor:1.5Kw
Cutting tolerance: ±2mm
Type of cutting: stop to cut, spot cut, post cut
Material of cutter: Cr12
Hydraulic solenoid valve manufacturer: Taiwan Uoshen
Plc control system
Main function: set length, set number, automatic/manual changeable
Display brandWuxi TouchWin
PLC brandDelta
Encoder brandJapan OMRON
Main electric brandSuzhou Siemens
Roll Forming Machine
